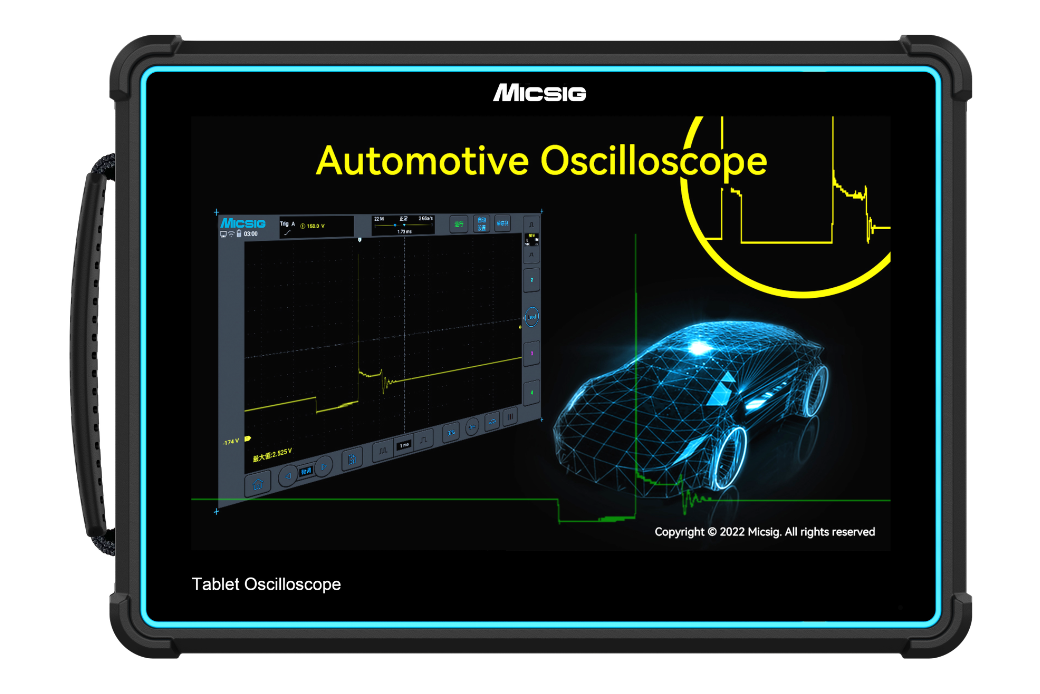

ATO series oscilloscope is an oscilloscope dedicated to automotive maintenance and diagnostics. Equipped with professional automotive diagnostic functions, it comes with 2 and 4 channels, max. 300MHz bandwidth, up to 2GSa/s sampling rate and 220Mpts memory depth, delivers most powerful signal capture and analysis capability.
With 10.1-inch high-resolution full touch screen, large built-in battery, and Micsig’s dedicated SigtestUI ™ multi-tasking system, the ATO automotive oscilloscope making modern automotive diagnostics much easier than ever before.
Key Features:
1. Bandwidth: Up to 300 MHz
2. Sampling Rate: Up to 1 GSa/s
3. Channels: 2- or 4-channel options
4. Memory Depth: Up to 220 Mpts
5. Display: 10.1-inch high-definition touchscreen
6. Battery: Built-in 7500 mAh lithium battery for extended portable operation

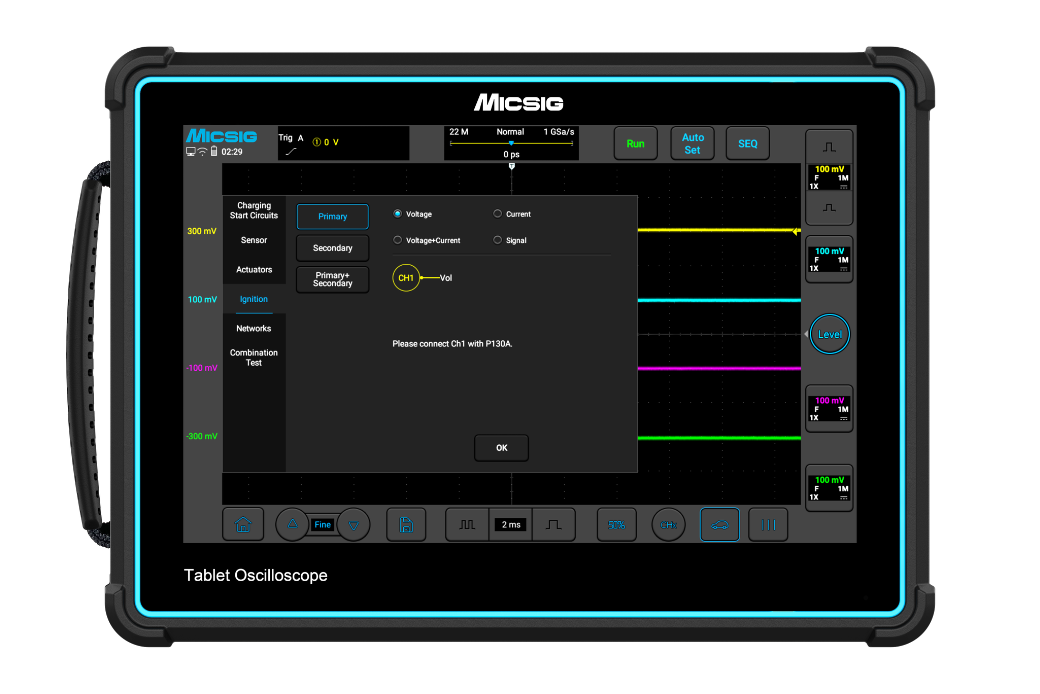

7. Automotive Diagnostics: Dedicated automotive software for fuel-powered and new energy vehicles, with one-click measurement functions
8. Serial Bus Decoding: Supports RS-232/422/485, UART, CAN, CAN FD, LIN, SPI, and I²C
9. Data Export: TXT decoding mode with CSV export
10. Signal Analysis: Advanced mathematical functions and FFT analysis
11. Operating System: SigTestUI™ multitasking interface for intuitive operation
12. Control Options: SCPI commands, Android/iOS mobile apps, and PC software
13. Safety & Portability: Compact design with power lock for secure transportation

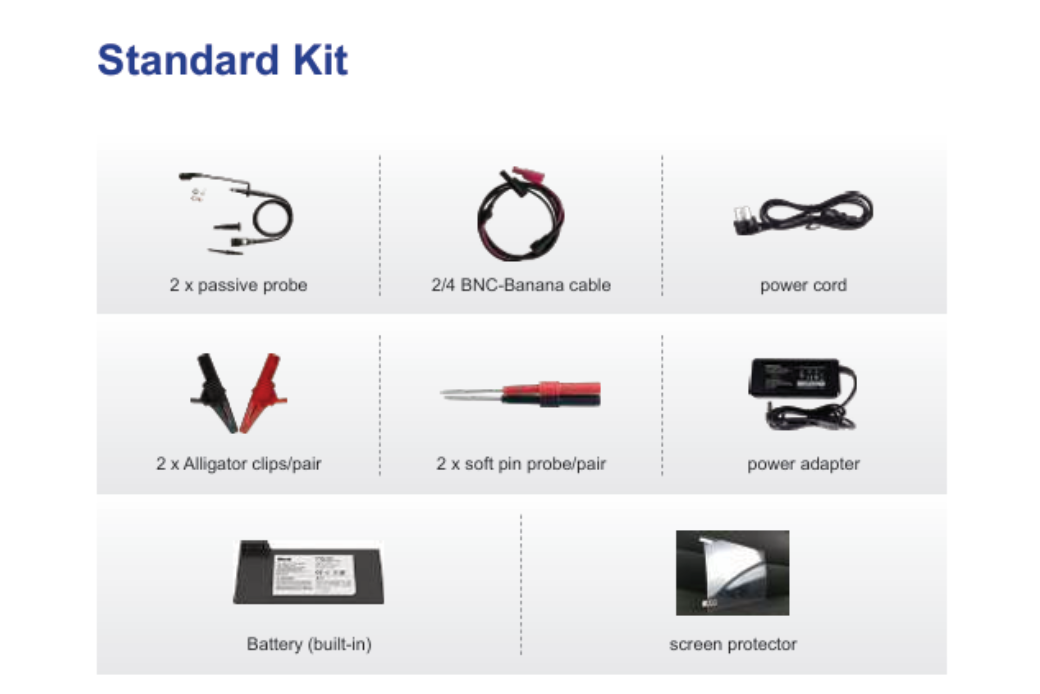

14. Accessories: Automotive-specific probes and alligator clips; Standard Kit and Master Kit options, with a carrying case included in the Master Kit
15. Applications: Automotive troubleshooting, vehicle electronics testing, and ICE/EV diagnostics
